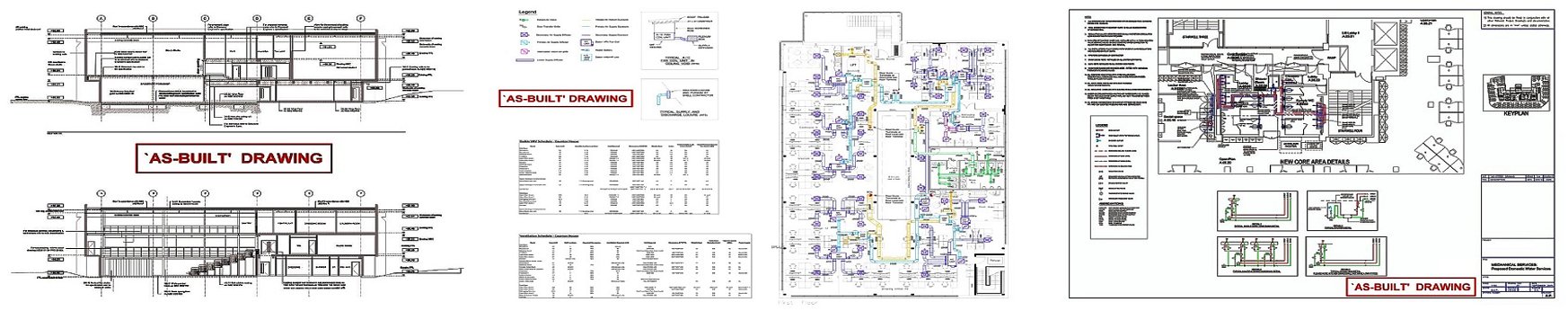

We  Excel  in    As-Built Drawings  /  As-Constructed  Drawings  /  As-Fitted Drawings  /  As-Installed Drawings  &  Record Drawings.

We can Quickly & Cost Effectively   Produce   As-Built   /  As-Constructed / As-Installed   /  As-Fitted  /   Record Drawings   for the ‘O&M’ manuals:
Electrical Lighting,   Power,   Fire Alarm,   Data & Communications,   Security,   Air Conditioning   &   Plumbing Systems Drawings,
For   Mechanical & Electrical  Contractors,   HVAC,   Sprinkler,   Security,   Fit-Out Contractors,   Consultants  &  Specialist Contractors.

The As-Built Drawings  are  usually required at the   End of a Project,  to  form part of the  Project’s  Handover Documentation,
where the drawings are an important part of the `Operating & Maintenance’   manual information.

Quite Often,  without  any  As-Built Drawings,  a Client can `Withhold Payment’ ,  as these  drawings  are  usually part of the  Handover Documentation.
Essentially  the  As-Built drawings,  Depict  the  Correct  Building  and  M&E Services layouts,  Finally Built / Installed / Fitted,  `On-Site’   for the Client.
The  As-Built drawings  should  also  include  any   Changes / Alterations   which occurred   `On-Site’ ,  from the   Original  Set  of  Drawings.

The  As-Built Drawings  can be  Extremely Useful, Especially for any Future   Building Works, `Facilities Maintenance’ or `Systems Upgrade’   Works.

Typically on a Project ,  The Client’s  Project Engineer  or  Respective Contractor, will `mark-up’  any Drawing Changes in `Red Pen’,
Then Scan-in the `marked-Up’ Drawings   or    Photo’s    of  the `marked-up’ drawings, then e-mail them to us with any associated project cad files.

Once Appointed,  We can Add your   Company Logo   &   Address Details   to the Drawing Title sheets,  then  Complete  your  Drawing Modification works,
Before Updating the Drawing’s  Revision Status to:   `As-Built’,   `As-Constructed’,   ` As-Installed’,   `As-Fitted’,   or   `Record Drawing’.

Finally,   On Completion,  we  can  e-mail  the   New Drawings   back to your company, in  Electronic `Fully Openable’   .Pdf   &   CAD  format.
